Automotive brake system surface shot blasting cleaning production line solution

Introduction of Automotive Brake System

An automobile brake system is a series of specialized devices that apply a certain force to certain parts of the car (mainly the wheels) to perform a certain degree of forced braking. The function of the brake system is to force the running car to decelerate or even stop according to the driver's request; to stabilize the parked car in various road conditions (including on the ramp); The speed remains stable.

Mayflay Solutions

1.Mayflay can provide surface cleaning and spray production lines for body structural parts.

Free Technical Consultation

Continuous shot blasting line solution for automotive body structural parts----From Mayflay professional team

One、Shot blasting solutions from Mayflay

1

Catenary pass type shot blasting machine

1. Model: MCT-1027P11-16 (Select model according to product size).

2. Applicable maximum part size: length: 2800mm, width: 400mm, height: 1000mm

3. Applicable maximum part weight: 2T.

4. Blast wheel QTY:16 PCS.

5. Blast wheel power:11Kw/pcs.

6. Blast wheel motor:ABB.

7. Semi-automatic flow control valve: 16 sets.

8.Operation mode: fully automatic.

9.Shot blasting room entrance size: width: 1000mm, height: 2800mm.

10. Delivery method: The chain automatically transmits.

11.PLC:Siemens.

12.Touch screen: Siemens.

2

Hanger type shot blasting machine

1. Model:MHB2-1717P11-3 (Select model according to product size).

2. Applicable maximum part size Dia:1700mm,Height:1700mm。

3. Applicable maximum part weight: 2T.

4. Blast wheel QTY:3 pcs.

5. Blast wheel power:11Kw/pcs.

6. Blast wheel motor:ABB.

7. Semi-automatic flow control valve:3 sets.

8.Operation mode: fully automatic.

9.Delivery method: Double track with double racks.

10. Automatic double door opening.

11.PLC:Siemens.

12.Touch screen: Siemens.

3

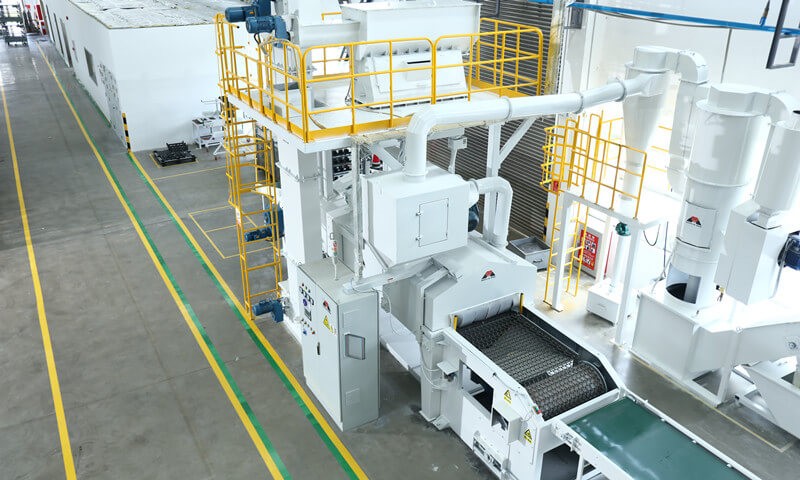

Wire mesh through type shot blasting machine

1. Model:MND-1030P11-4 (Select model according to product size).

2. Applicable maximum part size:width:1000mm,height:300mm。

3. Applicable maximum part weight: 1T.

4. Blast wheel QTY:4pcs.

5. Blast wheel power:11Kw/pcs.

6. Blast wheel motor:ABB.

7. Semi-automatic flow control valve:4sets.

8.Operation mode: fully automatic.

9.Delivery method:Mesh belt conveyor

10. Shot blasting room entrance:width:1062mm,height:300mm。

11.PLC:Siemens.

12.Touch screen: Siemens.

4

Wet dust collector

1. Model:MWDC-100(Explosion-proof).

2. Equipped with above mentioned shot blasting machine

3. Dust fan power:22Kw.

4. Air volum:≤9000m3/h.

5. Air pressure≤7000Pa/h.

6. Noise≤80db.

7. Tuyere diameter:φ320mm.

8. Dust emission:30mg/m3.

9.Scraper motor:0.37Kw.

10. Pump motor:7.5Kw.

11.PLC:Siemens.

12.Touch screen: Siemens.

Two、What products can Mayflay offer?

1

Car brake pad

一. Detailed informtaion from customer side

1. Single piece length (both maximum and minimum lengths are required).

2. Single piece width (both maximum and minimum width are required).

3. Part thickness.

4. Single piece weight (both maximum and minimum weight are required).

5. Part material.

6. he processing of the parts before shot blasting.

7.Requirements for surface cleanliness and roughness of parts.

8.Production requirements (daily production / monthly production / annual output).

9. Requirements for the dust collector

10.Provision of the height and space dimensions of the plant of the equipment.

11.Other requirements of customer side.
